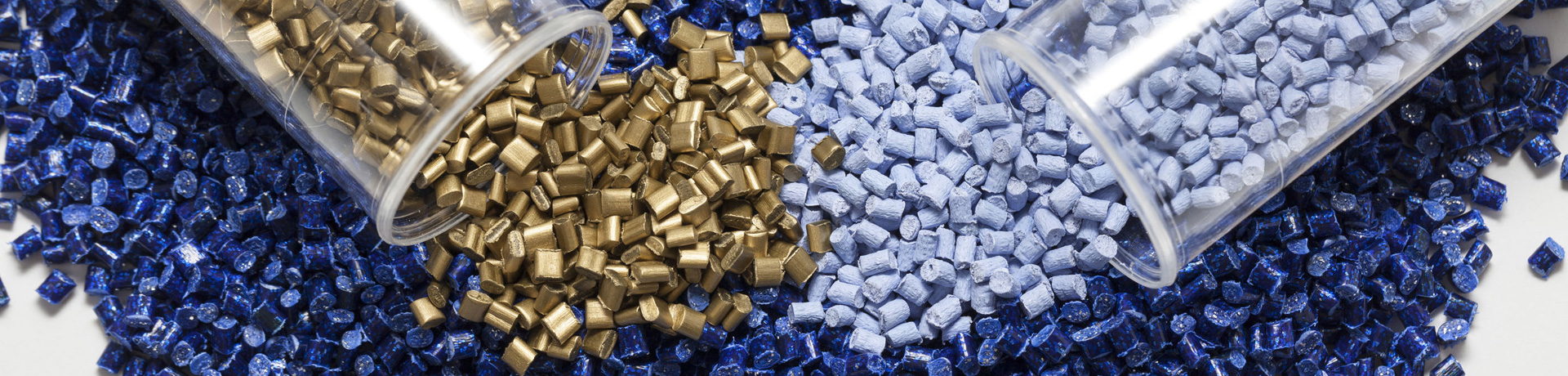

THERMOLPLASTIC POLYURETHANE TPU, The research and developmemt of TPU in original form (granule),
and the production / sales for this material.
Applications
( Solvent base adhesive )
( COMAX Series)
( FORMMAX Series)
( COVERMAX Series)
TPU can fully tolerance to be an alternate of traditional adhesion or glue, in two system MDI and HDI base,
supreme bonding strength with excellent dissolving rate and can be operated in low temperatue.
To process in film products with TPU can bring it with advantage of faster forming,
thiner body, higher transparency and less fish eyes.
1. JointMax-686 (Regular)
2. JointMax-688 (Easy soluable / low temperature)
3. JointMax-697 (Non-Yellowing)
JointMax (TM) this series of products mainly applied on shoe adhesives or solvent based glue. With it's superior heat resistance / solubility a strong bonding performance is pressented. Many of our users are taking this grade on footwear cementing. Besides, JointMax also with variable solvents users can determine the best ratio of solid contents to make the best cost efficiency for their production line due to the excellent performance in tensile strength, elasticity and softness.
| Item | Maximum Toluene in solvent (%) |
Activation Temperature (℃) | Tack-time (Min) |
Initial Bonding (kgf/cm2) |
|---|---|---|---|---|
| JointMax-686 | 30 | 55-65 | 20~30 | 8~13 |
| JointMax-688 | 90 | 55-65 | 10~20 | 9~13 |
1. CoMax-8658 / CoMax-8812 / CoMax-8860 / CoMax-8870 / CoMax-8890 : Hotmelt film grades, in different working condition / temperature.
2. Comax-8951(HDI) : For shoe counter, high stiffness and flexibility.
3. CoMax-8870/8875 : For medical purpose e.g garment / plaster / orthotic products.
4. CoMax-8955 : Specially for Eletronic / Automotive products and "METAL adhesion".
| Item | Type | Hardness (SHORE A) | Viscosity (ps/℃) | MFR (MI/℃) | MI (℃) | Application |
|---|---|---|---|---|---|---|
| 8860 | Polyester | 55±3A | 10000-15000 170℃ |
3-8 170℃ |
85±5 | Nylon lamination |
| 8804 | Polyester | 55±3A | 4500-8000 150℃ |
10-20 150℃ |
90±5 | Lamination (PET、nylon、fabrics) |
| 8801 | Polyester | 60±3A | 6000-15000 177℃ |
5-15 177℃ |
85±5 | Footwear |
| 8810 | Polyester | 75±3A | 4500-6000 150℃ |
15-20 150℃ |
100±5 | Footwear |
| 8810LL | Polyester | 75±3A | 2000-4000 120℃ |
40-60 120℃ |
87±3 | Footwear |
| 8820 | Polyester | 75±3A | 9500-12000 150℃ |
5-10 150℃ |
104±3 | Footwear |
| 8866 | Polyester | 80±3A | 2200-2500 120℃ |
40-50 120℃ |
85±3 | Water-prrof |
| 8880 | Polyester | 80±3A | 5000-10000 177℃ |
10-20 177℃ |
128±3 | Footwear |
| 8981 (Non-yellowing) |
Polyester | 80±3A | 3500-5500 150℃ |
15-25 150℃ |
115±3 | Yarn Cover Surface layer |
| 8890 | Polyester | 88±3A | 4200-10000 175℃ |
10-25 175℃ |
110±3 | Lamination |
| 8658 | Polyester | 95±3A | 3000-15000 150℃ |
5-30 150℃ |
90±3 | Lamination |
| 8805 | Polyether | 80±3A | 4500-8000 150℃ |
10-20 150℃ |
105±3 | Lamination |
| 8995 (Non-yellowing) |
Polyether | 95±3A | 15000-22000 175℃ |
1-10 175℃ |
133±3 | Lamination |
1. CoverMax-586 / 588 : For silk printing or for machinery this grade provides 2 different hardness types.
| Item | Hardness (SHORE A) | Softening point (Ts) | Elongation (%) |
|---|---|---|---|
| CoverMax-575 | 75±3A | 70~80 | 8~13 |
| CoverMax-586 | 90±3A | 80~90 | 9~13 |
1. FormMax-50A~95A : Hardness from 30-71 shore D (or 50-95 shore A)
